A generic IFD (TIFF) based raw file. More...

#include <ifdfile.hpp>

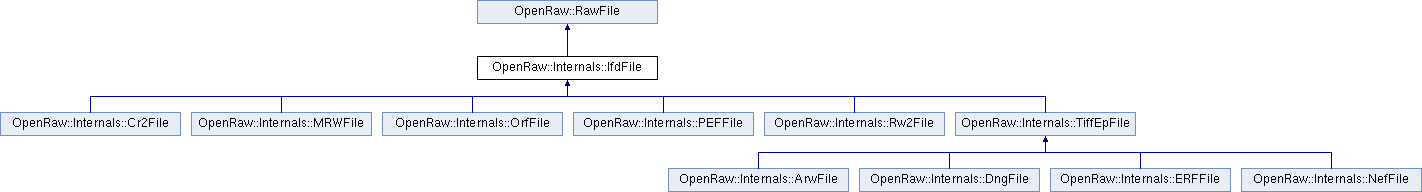

Inheritance diagram for OpenRaw::Internals::IfdFile:

Protected Member Functions
	IfdFile (const IO::Stream::Ptr &s, Type _type, bool instantiateContainer=true)

virtual ::or_error	_enumThumbnailSizes (std::vector< uint32_t > &list) override
	List the thumbnails in the IFD. More...

::or_error	_addThumbnailFromStream (uint32_t offset, uint32_t len, std::vector< uint32_t > &list)
	Add a thumbnail from a stream. More...

::or_error	_addThumbnailFromEntry (const IfdEntry::Ref &e, off_t offset, std::vector< uint32_t > &list)
	Add the thumbnail found in the IfdEntry. More...

virtual ::or_error	_locateThumbnail (const IfdDir::Ref &dir, std::vector< uint32_t > &list)
	Locate the thumnail in the IFD. More...

::or_error	_getRawDataFromDir (RawData &data, const IfdDir::Ref &dir)
	Load the compressed raw data from a standard location in an IFD. More...

virtual uint32_t	_getJpegThumbnailOffset (const IfdDir::Ref &dir, uint32_t &len)
	Get the JPEG thumbnail offset from dir. More...

virtual RawContainer *	getContainer () const override
	Get the container.

virtual IfdDir::Ref	_locateCfaIfd () override
	Locate the IFD for the raw data. More...

virtual IfdDir::Ref	_locateMainIfd () override
	Locate the main IFD. More...

virtual void	_identifyId () override
	Identify the file and set the ID internally.

virtual MetaValue *	_getMetaValue (int32_t meta_index) override
	Implementation for getMetaValue()

virtual uint32_t	_translateCompressionType (IFD::TiffCompress tiffCompression)
	Translate the compression type from the tiff type (16MSB) to the RAW specific type if needed (16MSB) More...

virtual ::or_error	_unpackData (uint16_t bpc, uint32_t compression, RawData &data, uint32_t x, uint32_t y, uint32_t offset, uint32_t byte_length)
	Unpack the data. More...

virtual ::or_error	_getRawData (RawData &data, uint32_t options) override
	Get the RAW data. More...

virtual ::or_error	_decompressIfNeeded (RawData &, uint32_t)
	Call to decompress if needed from _getRawData()

Protected Member Functions inherited from OpenRaw::RawFile
virtual Internals::IfdDir::Ref	_locateExifIfd ()
	Locate the Exif IFD. More...

virtual Internals::MakerNoteDir::Ref	_locateMakerNoteIfd ()
	Locate the MakerNote IFD. More...

	RawFile (Type _type)
	Construct a raw file. More...

virtual bool	vendorCameraIdLocation (Internals::IfdDir::Ref &ifd, uint16_t &index, const Internals::ModelIdMap *&model_map)
	Get the vendor camera ID location. More...

void	_setTypeId (TypeId _type_id)
	Set the file type id.

TypeId	_typeId () const
	Just get the type id value. No identification. You might want to use typeId() in the general case.

virtual ::or_error	_getThumbnail (uint32_t size, Thumbnail &thumbnail)
	Get the thumbnail of exact size. More...

void	_addThumbnail (uint32_t size, Internals::ThumbDesc &&desc)

virtual ::or_error	_getColourMatrix (uint32_t index, double *matrix, uint32_t &size)
	Get the colour matrix. More...

virtual ExifLightsourceValue	_getCalibrationIlluminant (uint16_t index)

TypeId	_typeIdFromModel (const std::string &make, const std::string &model)

TypeId	_typeIdFromMake (const std::string &make, const std::string &model)

void	_setIdMap (const camera_ids_t *map)

void	_setMatrices (const Internals::BuiltinColourMatrix *matrices)

const Internals::BuiltinColourMatrix *	_getMatrices () const

Protected Attributes
IO::Stream::Ptr	m_io

IfdFileContainer *	m_container

Additional Inherited Members
Public Types inherited from OpenRaw::RawFile
typedef ::or_rawfile_type	Type

typedef ::or_rawfile_typeid	TypeId

Public Member Functions inherited from OpenRaw::RawFile
	RawFile (const RawFile &)=delete

RawFile &	operator= (const RawFile &)=delete

virtual	~RawFile ()
	Destructor.

Type	type () const
	Accessor for the type.

TypeId	typeId ()
	The RAW file type ID. Identify it if needed. More...

TypeId	vendorId ()

const std::vector< uint32_t > &	listThumbnailSizes (void)
	List the available thumbnail sizes.

::or_error	getThumbnail (uint32_t size, Thumbnail &thumbnail)
	Get the thumbnail from the raw file. More...

::or_error	getRawData (RawData &rawdata, uint32_t options)
	Get the RAW data. More...

::or_error	getRenderedImage (BitmapData &bitmapdata, uint32_t options)
	Get the rendered image. More...

uint32_t	getOrientation ()
	Get the orientation of the image, using Exif enums.

uint32_t	colourMatrixSize ()

::or_error	getColourMatrix1 (double *matrix, uint32_t &size)
	Get colour matrix. More...

::or_error	getColourMatrix2 (double *matrix, uint32_t &size)

ExifLightsourceValue	getCalibrationIlluminant1 ()
	Get the calibration illuminant that match the colour matrix. More...

ExifLightsourceValue	getCalibrationIlluminant2 ()

virtual or_colour_matrix_origin	getColourMatrixOrigin () const
	Get the origin of the colour matrix for the RAW file. More...

Internals::IfdDir::Ref	cfaIfd ()
	Get the IFD containing the CFA.

Internals::IfdDir::Ref	mainIfd ()
	Get the main IFD.

Internals::IfdDir::Ref	exifIfd ()
	Get the Exif IFD.

Internals::MakerNoteDir::Ref	makerNoteIfd ()
	Get the MakerNote IFD.

const MetaValue *	getMetaValue (int32_t meta_index)
	Get a metadata value. More...

MetadataIterator *	getMetadataIterator ()

Static Public Member Functions inherited from OpenRaw::RawFile
static const char **	fileExtensions ()
	Return a NULL terminated list of file extensions that the library handle. More...

static RawFile *	newRawFile (const char *_filename, Type typeHint=OR_RAWFILE_TYPE_UNKNOWN)
	Factory method to create the proper RawFile instance. More...

static RawFile *	newRawFileFromMemory (const uint8_t *buffer, uint32_t len, Type typeHint=OR_RAWFILE_TYPE_UNKNOWN)
	Factory method to create the proper RawFile instance from content. More...

Static Protected Member Functions inherited from OpenRaw::RawFile
static RawFile::TypeId	modelid_to_typeid (const std::map< uint32_t, RawFile::TypeId > &model_map, uint32_t model_id)
	Helper to get the TypeId from the map. More...

::or_error	_getBuiltinLevels (const Internals::BuiltinColourMatrix *m, TypeId type_id, uint16_t &black, uint16_t &white)

::or_error	_getBuiltinColourMatrix (const Internals::BuiltinColourMatrix m, TypeId type_id, double matrix, uint32_t &size)

Detailed Description

A generic IFD (TIFF) based raw file.

Definition at line 51 of file ifdfile.hpp.

Member Function Documentation

◆ _addThumbnailFromEntry()

or_error OpenRaw::Internals::IfdFile::_addThumbnailFromEntry	(	const IfdEntry::Ref &	e,
		off_t	offset,
		std::vector< uint32_t > &	list
	)

protected

Add the thumbnail found in the IfdEntry.

Parameters

offset	is the offset for MakerNote. Pass 0 if not.
list	the thumbnail list to add to.

Definition at line 158 of file ifdfile.cpp.

References OR_ERROR_NOT_FOUND.

◆ _addThumbnailFromStream()

or_error OpenRaw::Internals::IfdFile::_addThumbnailFromStream	(	uint32_t	offset,
		uint32_t	len,
		std::vector< uint32_t > &	list
	)

protected

Add a thumbnail from a stream.

Parameters

offset	the offset in the IO stream
len	the length of the data

Definition at line 133 of file ifdfile.cpp.

References OR_DATA_TYPE_JPEG, OR_ERROR_NONE, and OR_ERROR_NOT_FOUND.

◆ _enumThumbnailSizes()

or_error OpenRaw::Internals::IfdFile::_enumThumbnailSizes ( std::vector< uint32_t > & list )

overrideprotectedvirtual

List the thumbnails in the IFD.

Return values

list	the list of thumbnails

Returns: the error code. OR_ERROR_NOT_FOUND if no thumbnail are found.

Implements OpenRaw::RawFile.

Reimplemented in OpenRaw::Internals::PEFFile, OpenRaw::Internals::OrfFile, OpenRaw::Internals::NefFile, and OpenRaw::Internals::MRWFile.

Definition at line 173 of file ifdfile.cpp.

References OR_ERROR_NONE, and OR_ERROR_NOT_FOUND.

Referenced by OpenRaw::Internals::OrfFile::_enumThumbnailSizes(), and OpenRaw::Internals::PEFFile::_enumThumbnailSizes().

◆ _getJpegThumbnailOffset()

uint32_t OpenRaw::Internals::IfdFile::_getJpegThumbnailOffset	(	const IfdDir::Ref &	dir,
		uint32_t &	len
	)

protectedvirtual

Get the JPEG thumbnail offset from dir.

Parameters

dir	the IFD to get the thumbnail from
len	the length of the JPEG stream. 0 is not valid.

Returns: the offset. 0 is not valid.

Definition at line 341 of file ifdfile.cpp.

◆ _getRawData()

or_error OpenRaw::Internals::IfdFile::_getRawData	(	RawData &	data,
		uint32_t	options
	)

overrideprotectedvirtual

Get the RAW data.

Parameters

data	The RAW data
option	The option bits

Returns: OR_ERROR_NONE if success Return the data compressed or uncompressed.

Implements OpenRaw::RawFile.

Reimplemented in OpenRaw::Internals::PEFFile, OpenRaw::Internals::OrfFile, and OpenRaw::Internals::MRWFile.

Definition at line 508 of file ifdfile.cpp.

References OR_ERROR_NONE, and OR_ERROR_NOT_FOUND.

◆ _getRawDataFromDir()

or_error OpenRaw::Internals::IfdFile::_getRawDataFromDir	(	RawData &	data,
		const IfdDir::Ref &	dir
	)

protected

Load the compressed raw data from a standard location in an IFD.

Parameters

data	the data storage
dir	the IFD

Returns: the error code.

Definition at line 533 of file ifdfile.cpp.

References OR_ERROR_NONE, and OR_ERROR_NOT_FOUND.

Referenced by OpenRaw::Internals::OrfFile::_getRawData(), and OpenRaw::Internals::PEFFile::_getRawData().

◆ _locateCfaIfd()

IfdDir::Ref OpenRaw::Internals::IfdFile::_locateCfaIfd ( )

overrideprotectedvirtual

Locate the IFD for the raw data.

This is not necessarily a unique IFD and it can be the same as the main.

Returns: the CFA Ifd. May be null.

Implements OpenRaw::RawFile.

Reimplemented in OpenRaw::Internals::TiffEpFile, OpenRaw::Internals::Rw2File, OpenRaw::Internals::MRWFile, OpenRaw::Internals::Cr2File, and OpenRaw::Internals::ArwFile.

Definition at line 73 of file ifdfile.cpp.

◆ _locateMainIfd()

IfdDir::Ref OpenRaw::Internals::IfdFile::_locateMainIfd ( )

overrideprotectedvirtual

Locate the main IFD.

Returns: the main IFD. Main be null.

Implements OpenRaw::RawFile.

Reimplemented in OpenRaw::Internals::Rw2File, OpenRaw::Internals::MRWFile, and OpenRaw::Internals::Cr2File.

Definition at line 79 of file ifdfile.cpp.

References OR_IFD_MAIN.

◆ _locateThumbnail()

or_error OpenRaw::Internals::IfdFile::_locateThumbnail	(	const IfdDir::Ref &	dir,
		std::vector< uint32_t > &	list
	)

protected

Locate the thumnail in the IFD.

Parameters

dir	the IfdDir where to locate the thumbnail

Returns: the error code. OR_ERROR_NOT_FOUND if the thumbnails are not found.

Definition at line 209 of file ifdfile.cpp.

References OR_ERROR_NOT_FOUND.

◆ _translateCompressionType()

uint32_t OpenRaw::Internals::IfdFile::_translateCompressionType ( IFD::TiffCompress tiff_compression )

protectedvirtual

Translate the compression type from the tiff type (16MSB) to the RAW specific type if needed (16MSB)

Parameters

tiffCompression the 16 bits value from TIFF

Returns: the actually value. Anything >= 2^16 is specific the RAW type

by default we don't translate the compression

Reimplemented in OpenRaw::Internals::NefFile.

Definition at line 382 of file ifdfile.cpp.

◆ _unpackData()

or_error OpenRaw::Internals::IfdFile::_unpackData	(	uint16_t	bpc,
		uint32_t	compression,
		RawData &	data,
		uint32_t	x,
		uint32_t	y,
		uint32_t	offset,
		uint32_t	byte_length
	)

protected

Unpack the data.

Parameters

bpc	bits per components
compression	the compression type
x	the width
y	the height
offset	the offset of the data
byte_length	the amount of data

Returns: error code

Definition at line 685 of file ifdfile.cpp.

References OR_ERROR_NONE, and OpenRaw::Internals::Unpack::unpack_be12to16().

Member Data Documentation

◆ m_container

IfdFileContainer* OpenRaw::Internals::IfdFile::m_container

protected

the real container

Definition at line 107 of file ifdfile.hpp.

Referenced by OpenRaw::Internals::MRWFile::_getRawData(), OpenRaw::Internals::MRWFile::_identifyId(), and OpenRaw::Internals::MRWFile::_locateMainIfd().

◆ m_io

IO::Stream::Ptr OpenRaw::Internals::IfdFile::m_io

protected

the IO handle

Definition at line 106 of file ifdfile.hpp.

The documentation for this class was generated from the following files:

lib/ifdfile.hpp
lib/ifdfile.cpp

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ _addThumbnailFromEntry()

◆ _addThumbnailFromStream()

◆ _enumThumbnailSizes()

◆ _getJpegThumbnailOffset()

◆ _getRawData()

◆ _getRawDataFromDir()

◆ _locateCfaIfd()

◆ _locateMainIfd()

◆ _locateThumbnail()

◆ _translateCompressionType()

◆ _unpackData()

Member Data Documentation

◆ m_container

◆ m_io
