IFD container (TIFF). More...

#include <ifdfilecontainer.hpp>

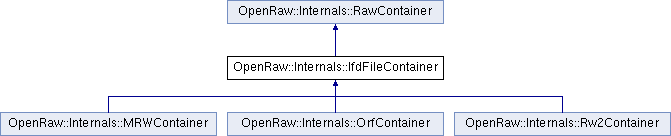

Inheritance diagram for OpenRaw::Internals::IfdFileContainer:

Public Types
enum	{ IFD_NONE = -1 , IFD_EXIF = -2 , IFD_GPS = -3 , IFD_INTEROP = -4 }

Public Types inherited from OpenRaw::Internals::RawContainer
enum	EndianType { ENDIAN_NULL = 0 , ENDIAN_BIG , ENDIAN_LITTLE }
	Define the endian of the container. More...

Public Member Functions
	IfdFileContainer (const IO::Stream::Ptr &file, off_t offset)
	Constructor. More...

virtual	~IfdFileContainer ()
	Destructor.

	IfdFileContainer (IfdFileContainer &&)=default

virtual EndianType	isMagicHeader (const char *p, int len)
	Check the IFD magic header. More...

IfdDir::Ref	setDirectory (int dir)
	Set the current directory. More...

int	countDirectories (void)
	Count the number of image file directories, not including EXIF, GPS and INTEROP. More...

std::vector< IfdDir::Ref > &	directories ()
	Get the directories, loading them if necessary. More...

int	currentDirectory ()
	Get the number of the current directory. More...

size_t	getDirectoryDataSize ()
	get the extra data size chunk associated to the current image directory More...

int	lastError () const
	Return the last error. More...

virtual int	exifOffsetCorrection () const override
	Return the Exif offset from the container begining. More...

void	setExifOffsetCorrection (int corr)
	Set the exif offset if needed.

::or_error	locateImageData (const IfdDir::Ref &dir, uint32_t &x, uint32_t &y, ::or_data_type &t)
	Locate image data in the ifd (excepted RAW) More...

Public Member Functions inherited from OpenRaw::Internals::RawContainer
	RawContainer (const IO::Stream::Ptr &_file, off_t offset)

virtual	~RawContainer ()

const IO::Stream::Ptr &	file () const

EndianType	endian () const

off_t	offset () const

bool	skip (off_t offset)

Option< int8_t >	readInt8 (const IO::Stream::Ptr &f) const

Option< uint8_t >	readUInt8 (const IO::Stream::Ptr &f) const

Option< int16_t >	readInt16 (const IO::Stream::Ptr &f, EndianType endian) const
	Read an int16 following the m_endian set.

Option< int32_t >	readInt32 (const IO::Stream::Ptr &f, EndianType endian) const
	Read an int32 following the m_endian set.

Option< uint16_t >	readUInt16 (const IO::Stream::Ptr &f, EndianType endian) const
	Read an uint16 following the m_endian set.

size_t	readUInt16Array (const IO::Stream::Ptr &f, std::vector< uint16_t > &v, size_t count) const
	Read an array of uint16 following the m_endian set. More...

Option< uint32_t >	readUInt32 (const IO::Stream::Ptr &f, EndianType endian) const
	Read an uint32 following the m_endian set.

size_t	fetchData (void *buf, off_t offset, size_t buf_size) const
	Fetch the data chunk from the file. More...

off_t	size () const
	Return the effective size of the container.

Protected Member Functions
virtual bool	locateDirsPreHook ()
	hook to be called at the start of _locateDirs()

Protected Member Functions inherited from OpenRaw::Internals::RawContainer
	RawContainer (const RawContainer &)=delete

	RawContainer (RawContainer &&)=default

RawContainer &	operator= (const RawContainer &)=delete

void	setEndian (EndianType _endian)

Additional Inherited Members
Protected Attributes inherited from OpenRaw::Internals::RawContainer
IO::Stream::Ptr	m_file
	The file handle.

off_t	m_offset
	The offset from the beginning of the file.

EndianType	m_endian

Detailed Description

IFD container (TIFF).

Defines the class for reading TIFF-like file, including but not limited to TIFF, Exif, CR2, NEF, etc. It is designed to also address issues like sone RAW file that do create veriation of TIFF just to confuse readers (like Olympus ORW).

Definition at line 52 of file ifdfilecontainer.hpp.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
IFD_NONE	invalid IFD. Means an error
IFD_EXIF	exif IFD: see field 0x6789 in IFD 0
IFD_GPS	GPS IFD: see field 0x8825 in IFD 0
IFD_INTEROP	interoperability IFD: see field 0xa005 in exif IFD

Definition at line 70 of file ifdfilecontainer.hpp.

Constructor & Destructor Documentation

◆ IfdFileContainer()

OpenRaw::Internals::IfdFileContainer::IfdFileContainer	(	const IO::Stream::Ptr &	file,
		off_t	offset
	)

Constructor.

Parameters

file	the file handle
offset	the offset from the start of the file

Definition at line 38 of file ifdfilecontainer.cpp.

Member Function Documentation

◆ countDirectories()

int OpenRaw::Internals::IfdFileContainer::countDirectories ( void )

Count the number of image file directories, not including EXIF, GPS and INTEROP.

Returns: the number of image file directories

Definition at line 68 of file ifdfilecontainer.cpp.

Referenced by directories(), and setDirectory().

◆ currentDirectory()

int OpenRaw::Internals::IfdFileContainer::currentDirectory ( )

Get the number of the current directory.

Returns: the index of the current directory. By default we are in directory 0. -1 indicates an initialized IFD file

◆ directories()

std::vector< IfdDir::Ref > & OpenRaw::Internals::IfdFileContainer::directories ( )

Get the directories, loading them if necessary.

Returns: the directories

Definition at line 80 of file ifdfilecontainer.cpp.

References countDirectories().

◆ exifOffsetCorrection()

virtual int OpenRaw::Internals::IfdFileContainer::exifOffsetCorrection ( ) const

inlineoverridevirtual

Return the Exif offset from the container begining.

By default it is 0, but some format like MRW needs a different one. This is an adjustement for the offset in the Exif IFD tag.

Reimplemented from OpenRaw::Internals::RawContainer.

Definition at line 128 of file ifdfilecontainer.hpp.

◆ getDirectoryDataSize()

size_t OpenRaw::Internals::IfdFileContainer::getDirectoryDataSize ( )

get the extra data size chunk associated to the current image directory

Returns: the size of the data chunk in bytes

Definition at line 111 of file ifdfilecontainer.cpp.

References OpenRaw::Internals::RawContainer::m_file, and OpenRaw::Internals::RawContainer::readInt32().

◆ isMagicHeader()

IfdFileContainer::EndianType OpenRaw::Internals::IfdFileContainer::isMagicHeader	(	const char *	p,
		int	len
	)

virtual

Check the IFD magic header.

Parameters

p	the pointer to check
len	the length of the block to check. Likely to be at least 4.

Returns: the endian if it is the magic header

subclasses needs to override it for like Olympus RAW

Reimplemented in OpenRaw::Internals::Rw2Container, OpenRaw::Internals::OrfContainer, and OpenRaw::Internals::MRWContainer.

Definition at line 52 of file ifdfilecontainer.cpp.

References OpenRaw::Internals::RawContainer::ENDIAN_BIG, OpenRaw::Internals::RawContainer::ENDIAN_LITTLE, and OpenRaw::Internals::RawContainer::ENDIAN_NULL.

◆ lastError()

int OpenRaw::Internals::IfdFileContainer::lastError ( ) const

inline

Return the last error.

Returns: the error code

Definition at line 118 of file ifdfilecontainer.hpp.

◆ locateImageData()

::or_error OpenRaw::Internals::IfdFileContainer::locateImageData	(	const IfdDir::Ref &	dir,
		uint32_t &	x,
		uint32_t &	y,
		::or_data_type &	t
	)

Locate image data in the ifd (excepted RAW)

Parameters

dir	the IFD dir to locate the image data in
t	the type of the image data

Returns: an error code

◆ setDirectory()

IfdDir::Ref OpenRaw::Internals::IfdFileContainer::setDirectory ( int dir )

Set the current directory.

Parameters

dir	the index of the directory to read, or one of the specific IFD index values that are < -1

Returns: NULL if not found, or return the reference to the current directory

Definition at line 88 of file ifdfilecontainer.cpp.

References countDirectories().

Referenced by OpenRaw::Internals::MRWFile::_locateMainIfd().

The documentation for this class was generated from the following files:

lib/ifdfilecontainer.hpp
lib/ifdfilecontainer.cpp
