An IFD directory. More...

#include <ifddir.hpp>

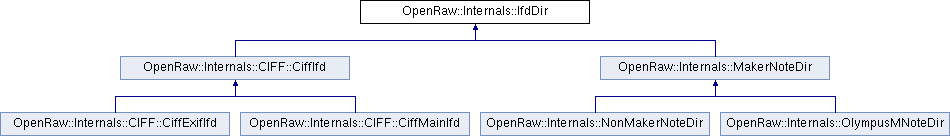

Inheritance diagram for OpenRaw::Internals::IfdDir:

Public Types
typedef std::weak_ptr< IfdDir >	WeakRef
	Weak ptr of an IfdDir.

typedef std::shared_ptr< IfdDir >	Ref
	Shared ptr of an IfdDir.

typedef std::vector< Ref >	RefVec
	Vector of shared ptr of IfdDir. More...

typedef std::map< uint16_t, IfdEntry::Ref >	Entries
	Ifd Entries map type. More...

Public Member Functions
	IfdDir (off_t _offset, RawContainer &_container, IfdDirType _type, const TagTable &tag_table=exif_tag_names)
	Construct an IfdDir. More...

IfdDirType	type () const
	Get the type of the IfdDir.

void	setType (IfdDirType type_)
	Set the type of the IfdDir.

off_t	baseOffset () const
	Get the base offset for the data. More...

void	setBaseOffset (off_t base)
	Set the base offset.

bool	isPrimary () const
	The IFD is a primary in the TIFF/EP sense. More...

bool	isThumbnail () const
	The IFD is for a thumnail. More...

off_t	offset () const
	Return the offset.

const RawContainer &	container () const
	The container for the IfdDir, const.

RawContainer &	container ()
	The container for the IfdDir.

virtual bool	load ()
	Load the directory to memory. More...

int	numTags ()
	Return the number of entries.

IfdEntry::Ref	getEntry (uint16_t id) const
	Get the IfdEntry for the tag id. More...

const Entries &	entries () const
	Direct access to the entries.

RawContainer::EndianType	endian () const
	the Container endian More...

void	setEndian (RawContainer::EndianType _endian)
	Set the endian for the IFD. More...

template<typename T >
Option< T >	getValue (uint16_t id) const
	Get a T value from an entry. More...

Option< uint32_t >	getIntegerValue (uint16_t id)
	Get an loosely typed integer value from an entry. More...

off_t	nextIFD ()
	Get the offset of the next IFD in absolute.

Ref	getSubIFD (uint32_t idx=0) const
	Get the SubIFD at index idx. More...

Option< std::vector< IfdDir::Ref > >	getSubIFDs ()
	Get all SubIFDs. More...

Ref	getExifIFD ()
	Get the Exif IFD. More...

Ref	getMakerNoteIfd (or_rawfile_type file_type)
	Get the MakerNote IFD. More...

void	setTagTable (const TagTable &tag_table)
	Set the tag table for tag to name correspondance. More...

const char *	getTagName (uint32_t tag) const
	Return the tag name for tag. More...

template<typename T >
Option< std::vector< T > >	getEntryArrayValue (IfdEntry &e) const
	Get the entry value as an array. More...

template<typename T >
T	getEntryValue (IfdEntry &e, uint32_t idx=0, bool ignore_type=false) const
	Get the typed entry value. More...

uint32_t	getEntryIntegerArrayItemValue (IfdEntry &e, int idx) const
	Return the integer value at index. It will coerce the type. More...

MetaValue *	makeMetaValue (IfdEntry &e) const
	Make a meta value out of the IFD entry. More...

Protected Attributes
Entries	m_entries

Detailed Description

An IFD directory.

Definition at line 51 of file ifddir.hpp.

Member Typedef Documentation

◆ Entries

typedef std::map<uint16_t, IfdEntry::Ref> OpenRaw::Internals::IfdDir::Entries

Ifd Entries map type.

The key is the tag id of the entry.

Definition at line 66 of file ifddir.hpp.

◆ RefVec

typedef std::vector<Ref> OpenRaw::Internals::IfdDir::RefVec

Vector of shared ptr of IfdDir.

Used for situations like with IfdFileContainer.

Definition at line 61 of file ifddir.hpp.

Constructor & Destructor Documentation

◆ IfdDir()

OpenRaw::Internals::IfdDir::IfdDir	(	off_t	_offset,
		RawContainer &	_container,
		IfdDirType	_type,
		const TagTable &	tag_table = `exif_tag_names`
	)

Construct an IfdDir.

Parameters

_offset	The offset from the begining of the container (where it starts)
_container	The container
_type	The IFD type.
tag_table	The tag to name table. By default it is the Exif tags.

Definition at line 52 of file ifddir.cpp.

Member Function Documentation

◆ baseOffset()

off_t OpenRaw::Internals::IfdDir::baseOffset ( ) const

inline

Get the base offset for the data.

Usually it is 0.

Definition at line 88 of file ifddir.hpp.

◆ endian()

RawContainer::EndianType OpenRaw::Internals::IfdDir::endian ( ) const

inline

the Container endian

Usually it is the same as the file, but MakerNote are weird and might have a different idea.

Definition at line 137 of file ifddir.hpp.

Referenced by OpenRaw::Internals::CIFF::CiffMainIfd::load().

◆ getEntry()

IfdEntry::Ref OpenRaw::Internals::IfdDir::getEntry ( uint16_t id ) const

Get the IfdEntry for the tag id.

Requires load() to have been called once.

Returns: an IfdEntry::Ref. NULL if not found.

Definition at line 96 of file ifddir.cpp.

References m_entries.

Referenced by OpenRaw::Internals::MakerNoteDir::getIfdInEntry(), getIntegerValue(), getMakerNoteIfd(), getSubIFD(), getSubIFDs(), and getValue().

◆ getEntryIntegerArrayItemValue()

uint32_t OpenRaw::Internals::IfdDir::getEntryIntegerArrayItemValue	(	IfdEntry &	e,
		int	idx
	)		const

Return the integer value at index. It will coerce the type.

Parameters

e	the IFD entry
idx	the index

Returns: the integer value or 0.

Definition at line 227 of file ifddir.cpp.

References OpenRaw::Internals::IfdEntry::type().

Referenced by getIntegerValue().

◆ getExifIFD()

IfdDir::Ref OpenRaw::Internals::IfdDir::getExifIFD ( )

Get the Exif IFD.

Returns: Ref to the new IfdDir if found

The SubIFD is located at offset found in the field EXIF_TAG_SUB_IFDS

Definition at line 179 of file ifddir.cpp.

◆ getIntegerValue()

Option< uint32_t > OpenRaw::Internals::IfdDir::getIntegerValue ( uint16_t id )

Get an loosely typed integer value from an entry.

This method is preferred over getLongValue() or getShortValue() unless you really want the strong typing that IFD structure provide.

Parameters

id	the IFD field id

Returns: an Option<uint32_t> containing the value or none.

Definition at line 107 of file ifddir.cpp.

References getEntry(), and getEntryIntegerArrayItemValue().

◆ getMakerNoteIfd()

IfdDir::Ref OpenRaw::Internals::IfdDir::getMakerNoteIfd ( or_rawfile_type file_type )

Get the MakerNote IFD.

Parameters

file_type the file type as a hint

Returns: Ref to the new MakerNoteDir if found

Definition at line 197 of file ifddir.cpp.

References getEntry().

◆ getSubIFD()

IfdDir::Ref OpenRaw::Internals::IfdDir::getSubIFD ( uint32_t idx = 0 ) const

Get the SubIFD at index idx.

Returns: Ref to the new IfdDir if found

The SubIFD is locate at offset found in the field EXIF_TAG_SUB_IFDS

Definition at line 137 of file ifddir.cpp.

References getEntry().

◆ getSubIFDs()

Option< std::vector< IfdDir::Ref > > OpenRaw::Internals::IfdDir::getSubIFDs ( )

Get all SubIFDs.

Returns: an option of ifds the list of IFDs Ref

Definition at line 157 of file ifddir.cpp.

References getEntry().

◆ getTagName()

const char * OpenRaw::Internals::IfdDir::getTagName ( uint32_t tag ) const

Return the tag name for tag.

Returns: a static string or nullptr if not found.

Definition at line 218 of file ifddir.cpp.

◆ getValue()

template<typename T >

Option<T> OpenRaw::Internals::IfdDir::getValue ( uint16_t id ) const

inline

Get a T value from an entry.

Parameters

id	the IFD field id

Returns: an Option<T> containing the value or none.

Definition at line 156 of file ifddir.hpp.

References getEntry().

◆ isPrimary()

bool OpenRaw::Internals::IfdDir::isPrimary ( ) const

The IFD is a primary in the TIFF/EP sense.

Returns: true if EXIF_TAG_NEW_SUBFILE_TYPE is 0.

Definition at line 40 of file ifddir.cpp.

◆ isThumbnail()

bool OpenRaw::Internals::IfdDir::isThumbnail ( ) const

The IFD is for a thumnail.

Returns: true if EXIF_TAG_NEW_SUBFILE_TYPE is 1.

Definition at line 46 of file ifddir.cpp.

◆ load()

bool OpenRaw::Internals::IfdDir::load ( )

virtual

Load the directory to memory.

The only reason you'd want to override is to synthesize an IFD from non-IFD.

Returns: true on success.

Reimplemented in OpenRaw::Internals::NonMakerNoteDir, OpenRaw::Internals::CIFF::CiffExifIfd, and OpenRaw::Internals::CIFF::CiffMainIfd.

Definition at line 65 of file ifddir.cpp.

References m_entries, OpenRaw::Internals::RawContainer::readInt16(), OpenRaw::Internals::RawContainer::readInt32(), OpenRaw::Internals::RawContainer::readUInt16(), and type().

◆ makeMetaValue()

MetaValue * OpenRaw::Internals::IfdDir::makeMetaValue ( IfdEntry & e ) const

Make a meta value out of the IFD entry.

Returns: a MetaValue or nullptr. Must be freed.

Definition at line 290 of file ifddir.cpp.

References OpenRaw::Internals::IfdEntry::type().

◆ setEndian()

void OpenRaw::Internals::IfdDir::setEndian ( RawContainer::EndianType _endian )

inline

Set the endian for the IFD.

By default it's the same as the container but you might want to set it if, for example, parsing a MakerNote.

Definition at line 146 of file ifddir.hpp.

◆ setTagTable()

void OpenRaw::Internals::IfdDir::setTagTable ( const TagTable & tag_table )

inline

Set the tag table for tag to name correspondance.

This is used to override the tag name in IFD that use non standard tags, like MakerNote or Panasonic RW2.

Definition at line 211 of file ifddir.hpp.

Member Data Documentation

◆ m_entries

Entries OpenRaw::Internals::IfdDir::m_entries

protected

The IFD entries

Definition at line 240 of file ifddir.hpp.

Referenced by entries(), getEntry(), load(), OpenRaw::Internals::CIFF::CiffExifIfd::load(), nextIFD(), and numTags().

The documentation for this class was generated from the following files:

lib/ifddir.hpp
lib/ifddir.cpp
